Many people have experienced this: chest tightness, palpitations, and shortness of breath for a long time. ECG, echocardiography, and coronary CTA all come back normal, yet the chest discomfort persists. Where exactly is the problem?
In fact, the heart's "problem" may not lie in the blood vessels or valves, but could be hidden deep within the myocardium. In such cases, a Cardiac Magnetic Resonance (CMR) is needed.
"
First, Understand: What Do the 3 Cardiac Tests Actually Check?
Echocardiography: Examines heart structure and valve function; it is the first-line screening tool.
Coronary CTA: Checks for coronary artery stenosis to rule out coronary heart disease.
Cardiac Magnetic Resonance: Specifically visualizes the myocardium itself, detecting edema, inflammation, necrosis, and fibrosis. It is the "precision magnifier" for myocardial diseases.
"

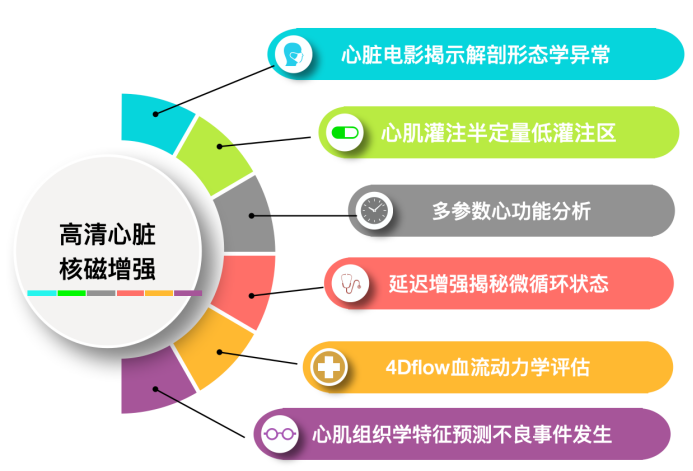

Cardiac MRI Uses These 3 Key Techniques to Find the Cause
Cardiac Cine Imaging: Dynamically visualizes myocardial motion, assesses systolic function, and identifies valvular issues.
T1/T2 Mapping: Detects early myocardial inflammation and edema with higher sensitivity than standard exams.
Late Gadolinium Enhancement (LGE): Differentiates myocarditis, myocardial infarction, and stress cardiomyopathy, helping to avoid misdiagnosis.

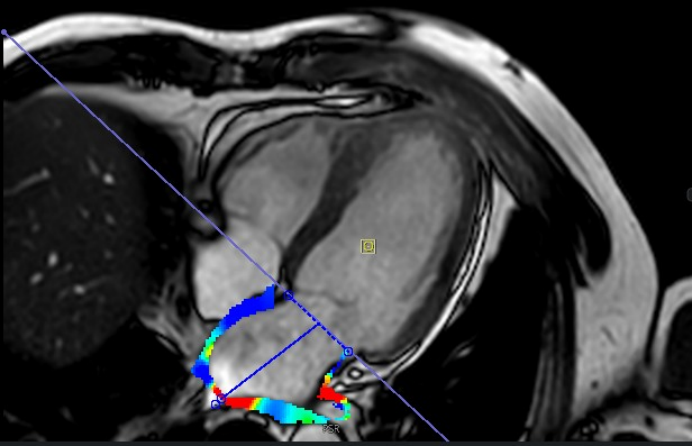

Cardiac cine imaging reveals myocardial wall motion and strain

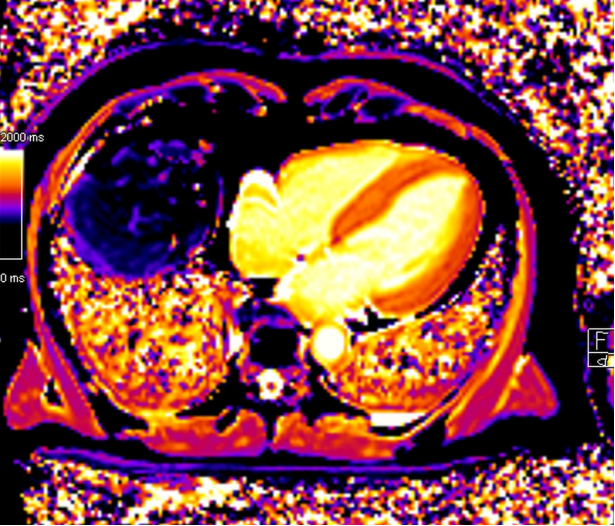

Left: Mapping imaging assesses myocardial edema and fibrosis;

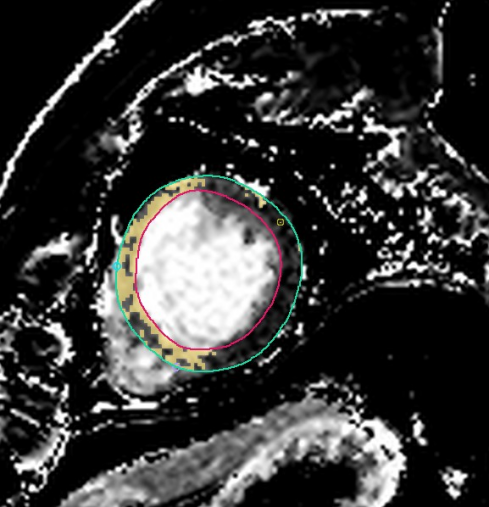

Right: Late gadolinium enhancement reveals myocardial fibrosis and microvascular dysfunction
When Should You Consider a Cardiac MRI?
For patients with long-term chest tightness, shortness of breath, or unexplained arrhythmias, cardiac MRI can effectively identify myocardial ischemic necrosis, fibrosis, and inflammatory edema.
For patients with non-ischemic cardiomyopathy, such as assessing the extent of damage in hypertrophic and dilated cardiomyopathy, valvular heart disease, and abnormal deposition in cardiac amyloidosis.
For patients undergoing cancer chemotherapy requiring monitoring of drug-induced cardiotoxicity, to assess cardiac function and the extent of myocardial cell damage.
For patients requiring evaluation of the degree of myocardial fibrosis and microvascular dysfunction.
"
Its Advantages: Safe and Precise
✅ The "Gold Standard" for Assessing Cardiac Structure and Function: The exam is radiation-free, provides a more comprehensive and clearer view, results are not affected by the operator's skill, and repeated scans yield stable and reliable outcomes.
✅ The "Microscope" for Visualizing Myocardial Disease: Using specialized imaging techniques, it can clearly identify subtle pathological changes in the myocardium, such as necrosis, stiffening fibrosis, edema, and iron deposition, effectively "capturing" the internal pathology of the heart as images.
✅ The "Touchstone" for Early Detection of Dangerous Cardiomyopathies: For cardiomyopathies that can cause sudden death, such as hypertrophic cardiomyopathy, cardiac amyloidosis, and Fabry disease, it plays an irreplaceable role in early diagnosis and risk assessment.
✅ Identifying Special Types of Myocardial Infarction: Suitable for patients with normal coronary CT angiography results but whose symptoms and blood tests strongly suggest a myocardial infarction (i.e., Myocardial Infarction with Non-Obstructive Coronary Arteries).

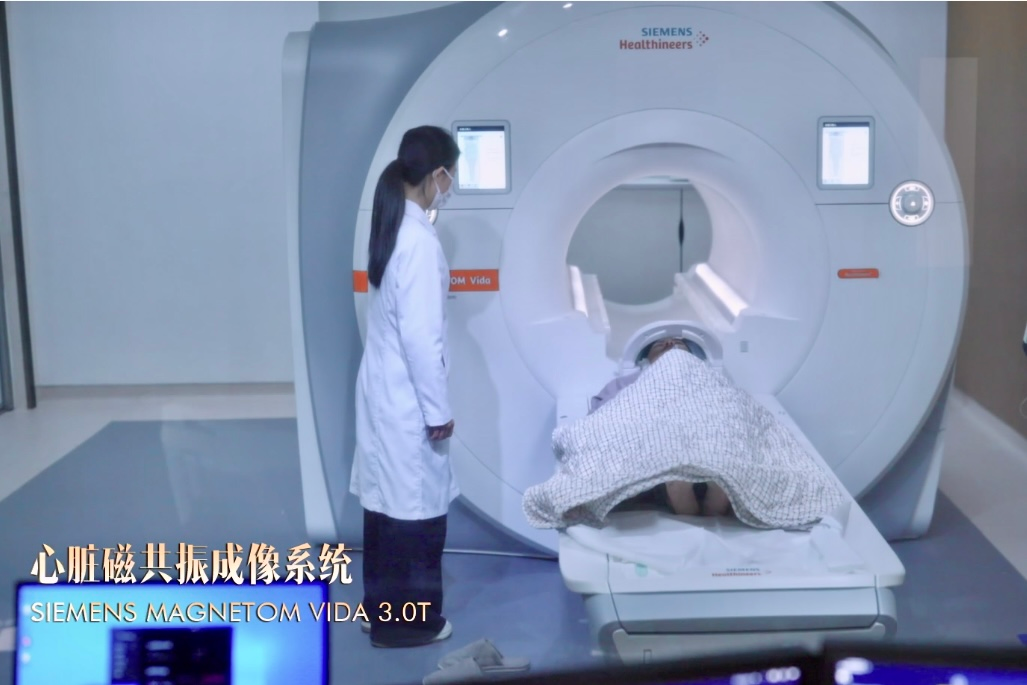

MRI Scanner
Pre- and Post-Exam Precautions
Remove all metal objects beforehand, including necklaces, keys, and watches.
If you have any implants (e.g., stents, pacemakers), inform your doctor when scheduling the appointment.
Contrast-enhanced scans require an assessment of kidney function; patients with severe renal insufficiency must communicate this in advance.
A comprehensive evaluation by a cardiologist is required before the exam, along with recent blood tests, ECG, and echocardiography reports.
The exam requires holding your breath; inform your doctor if you have claustrophobia.
The entire procedure takes approximately 30-60 minutes, is painless and non-invasive. You can resume normal eating and activities afterward. After a contrast-enhanced scan, drink plenty of water to help flush out the contrast agent.
Cardiac MRI is not a first-line test. Doctors typically start with basic screenings like echocardiography or CTA. When these tests fail to find a cause and a primary myocardial issue is suspected, CMR is then used for a definitive, precise diagnosis.
If your heart discomfort persists without a clear cause, consider discussing with your cardiologist whether this test is appropriate. Uncovering the hidden issues deep within the myocardium will give you greater peace of mind.
Author >>> Heyou Pinnacle Medical Center, Department of General Medicine | Mu Huikai (Attending Physician), HeYou Hospital, Department of Radiology | Ren Chenglong (Attending Physician)
Reviewer >>> HeYou Hospital, Department of Cardiovascular Medicine | Hua Xianping (Chief Physician)
(As individual patient conditions vary, treatment outcomes may differ. Please consult a professional physician for specific advice.)
